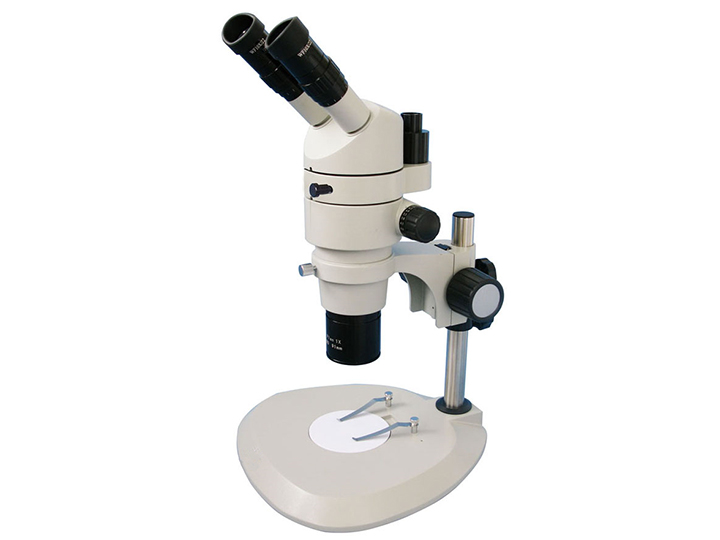

ZOOM-0880
Video microscopes produce an erect three-dimensional image when viewing an object. The stereoscopic effect is strong, the image is clear and wide, and it has a long working distance, and is a conventional microscope with a wide range of applications. It is easy to operate, intuitive, and has high verification efficiency. It is suitable for inspection of electronic industry production lines, verification of printed circuit boards, verification of soldering defects (printing misalignment, sag, etc.) in printed circuit components, verification of single board PC, vacuum The verification of the fluorescent display VFD, etc., enlarges the image of the object and displays it on the screen of the computer, and can save, enlarge and print the image. With measurement software, you can measure various data.
二、Instrument characteristics
● Original design with high magnification and high resolution● Simultaneous video (or digital) display, digital photography, visual observation, binocular observation into a positive image
● Applicable to the observation, detection and measurement analysis of the microscopic surface of the object
三、Technical specifications
|
Zoom mode |
Parallel optical path system, 0.8X~8X continuous zoom lens body |
|
Magnification |
Standard total magnification 8X~80X, magnification 360X |
|
eyepiece |
High-eye wide-angle eyepiece (10X, Φ22 mm) |
|
Objective lens |
1X flat field objective |
|
Working distance |
91mm |
|
Pitch adjustment range (with 10X eyepiece) |
52mm~76mm |
|
Dioptric adjustment range |
±6 Diopter |
|
Focusing range |
50mm（Fang Lizhu is100mm ） |
|
Binocular tube |
tilt45° |
|
Bracket and main body matching size |
Φ76mm |
|
Bracket and main body matching size |
140mm |
|
Round column size |
Φ25mm |
|
Center table diameter |
Φ95mm |
|
Zoom ratio |
10:1 |
|
Total magnification |
8-140X (take 19-inch display as an example), add 2X auxiliary objective lens up to 280X |
