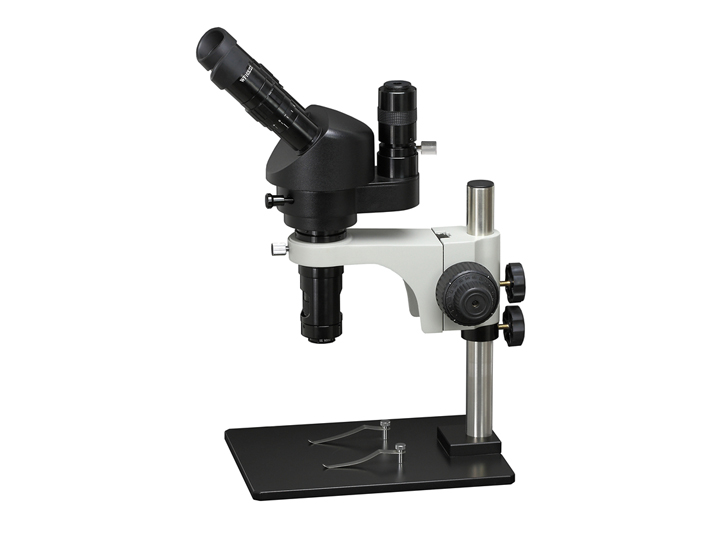

ZOOM-1510
Video microscopes produce an erect three-dimensional image when viewing an object. The stereoscopic effect is strong, the image is clear and wide, and it has a long working distance, and is a conventional microscope with a wide range of applications. It is easy to operate, intuitive, and has high verification efficiency. It is suitable for inspection of electronic industry production lines, verification of printed circuit boards, verification of soldering defects (printing misalignment, sag, etc.) in printed circuit components, verification of single board PC, vacuum The verification of the fluorescent display VFD, etc., enlarges the image of the object and displays it on the screen of the computer, and can save, enlarge and print the image. With measurement software, you can measure various data.
二、Instrument characteristics
● Original design with ultra high magnification and high resolution● Simultaneous video (or digital) display, digital photography, visual observation, binocular observation into a positive image
● Applicable to the observation, detection and measurement analysis of the microscopic surface of the object
三、Technical specifications
Visual magnification Standard visual total magnification
15X~100X
Continuous zoom range
1.5X~10X
Working distance
82mm
Lens barrel
Binocular head eyepiece tilt45°
light source
Long-life, environmentally friendly, wide-wavelength LED coaxial illumination (for MZDH15100BTC)
Distance adjustment range
53mm~75mm
Dioptric adjustment range
±6 Diopter
Focusing range
Hand wheel focusing 50mm, round column height 242mm
Bracket and main body matching size
Φ45mm
Zoom ratio
6.7:1
Total magnification
15-150X (take 19-inch display as an example), add 2X auxiliary objective lens up to 300X
四、introduction
The computer-based video microscope system is a high-tech product developed by combining precision optical microscope technology, advanced photoelectric conversion technology and cutting-edge computer image processing technology. Real-time moving images can be easily viewed on the display and the desired pictures can be edited, saved and printed.
五、System composition
Computer type (ZOOM-1510C) 1. Stereo microscope 2. Adapter lens 3. Camera (CCD) 4. Computer (optional)
六、Reference magnification
Computer type (ZOOM-1510C): 7-150 times (take 19-inch display as an example), add 2X auxiliary objective lens up to 300X
