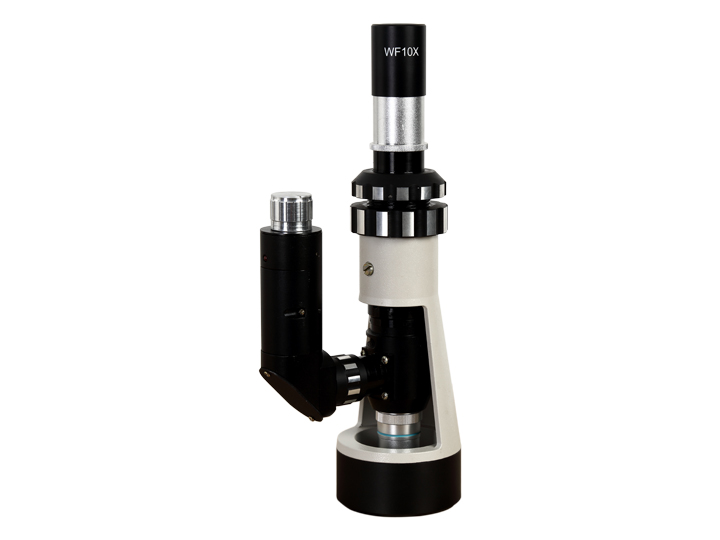

BX-500Field type metallographic microscope
The on-site metallographic microscope is a metallographic inspection and failure analysis microscope for a variety of large workpieces on the site. It does not need to be cut and sampled, and is directly polished and polished on the workpiece to ensure the integrity of the workpiece. The microscope base has a magnetic suction seat. Field metallographic examination of the tissue directly observed on the workpiece. On-site metallographic microscope for aerospace manufacturing, machinery manufacturing, vehicle manufacturing, boiler and pressure vessel manufacturing and inspection, petrochemical, railway, shipbuilding, power plant, power station, equipment installation, large mold, safety inspection, quality supervision, physical and chemical laboratory And other industries. It can also be widely used in the factory, laboratory for the identification of casting quality, raw material inspection or research and analysis of metallographic structure after material processing.
二、Instrument characteristics：
★ Completely equipped with on-site sample preparation, microscopic observation and micro-digital photography, it is easy and fast to use. Sample preparation for mechanical, electrolytic, chemical, etc. methods.★ The microscope adopts large field of view eyepiece and flat field achromatic objective lens, the brightness is adjustable, there is fine adjustment mechanism, the focus is stable, and the image is clear. There is a condensing lens halogen light source, and the field of view is even and flat.

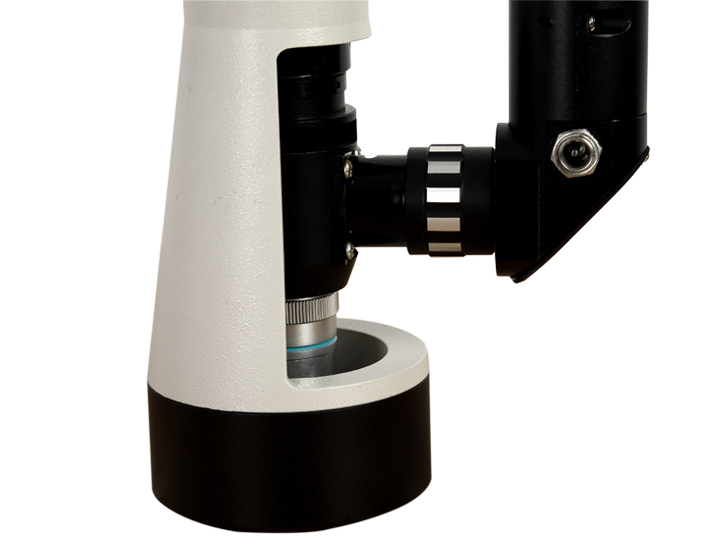

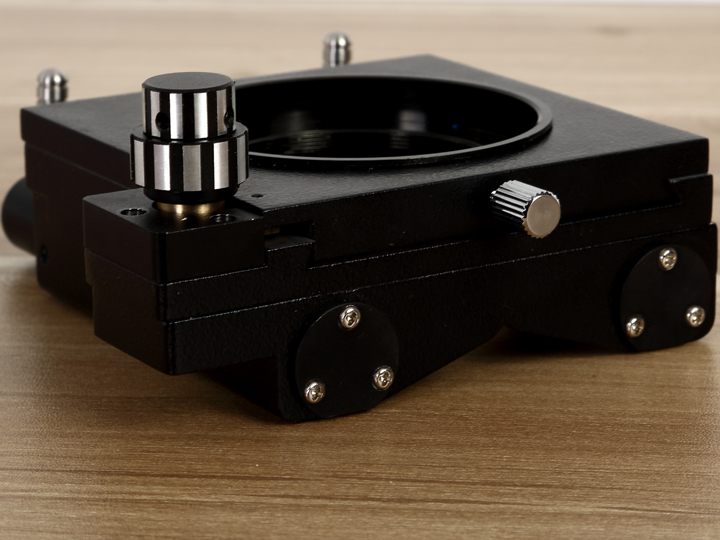

★ The microscope base is equipped with a high-magnetic two-wire foot that can be switched on and off. It can be firmly attached to the workpiece and can be adapted to various diameter pipes and planes. The field of view can be adjusted in the X-Y plane.
★ It is equipped with a photomicroscope lens and a camera connected to a metallographic microscope, which can be photographed directly on site.
三、Technical Parameters

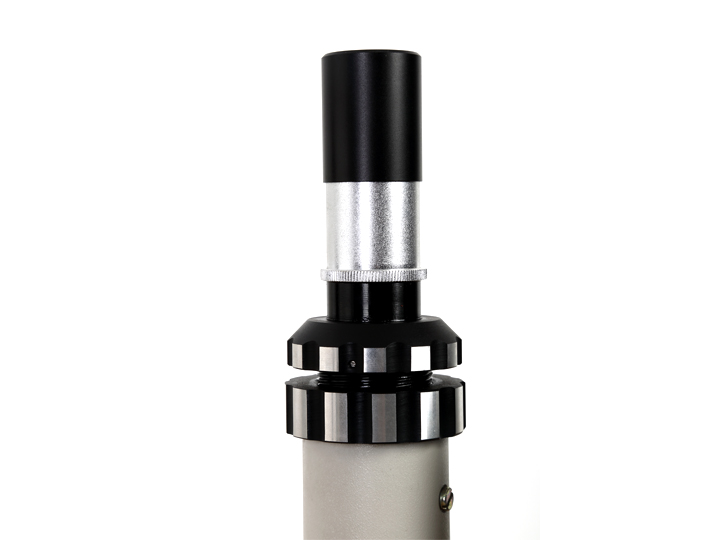

1、eyepiece
|
Types of |
gain |
Field of view(mm) |
|
eyepiece |
10X |
ф20 |
2、Objective lens
|
Types of |
gain |
Numerical apertureNA |
Working distance（mm） |
|
Flat field achromatic objective |
10X |
0.25 |
8.9 |
|
|
20X |
0.45 |
7.8(Purchase) |
|
|
40X |
0.60 |
3.2 |
3. Total optical magnification: 100×-400×
4. Miniature speed polishing machine:
5. Electromagnetic base: suction force 25N/cm2, and equipped with a magnetic switch.
6. Lighting power supply: aspherical condenser, 6V/15W halogen lamp, adjustable brightness, AC 220V (50Hz).
Rechargeable battery: 6V 20W Charging once, can work continuously for 2 hours (optional)
7. Packing box: 475×280×160mm (aluminum alloy), instrument weight: 0.9 kg
三、Instrument extension configuration
BX-500 Instrument host (including: objective lens, eyepiece, power supply, portable polishing machine, modified grinding and polishing machine)
