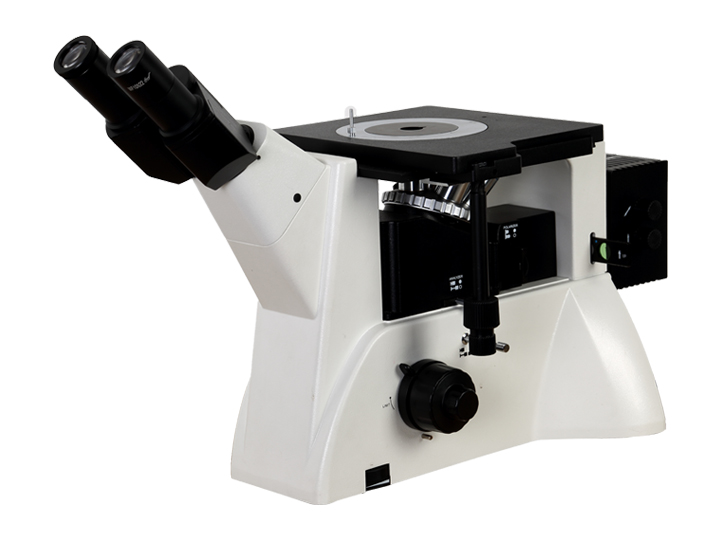

CDM-202Inverted metallographic microscope

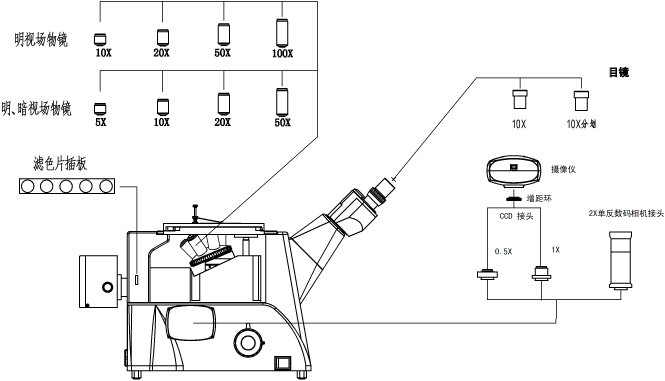

The CDM-202 inverted metallographic microscope adopts the excellent infinity optical system and modular functional design concept, which can easily upgrade the system and realize the functions of polarized light observation and bright field observation. The compact and stable high-rigidity body fully reflects the anti-vibration requirements of microscope operation. The ideal design with ergonomic requirements makes the operation more convenient and comfortable, and the space is wider. It is suitable for microscopic observation of metallographic structure and surface morphology. It is an ideal instrument for metallurgy, mineralogy and precision engineering research. Suitable for the electronics, metallurgy, chemical and instrumentation industries for viewing transparent, translucent or opaque materials such as cermets, manifolds, printed circuit boards, liquid crystal panels, films, fibers, coatings and other non-metallic materials. It is suitable for observation and analysis by medicine, agriculture, forestry, public security, schools and scientific research departments.

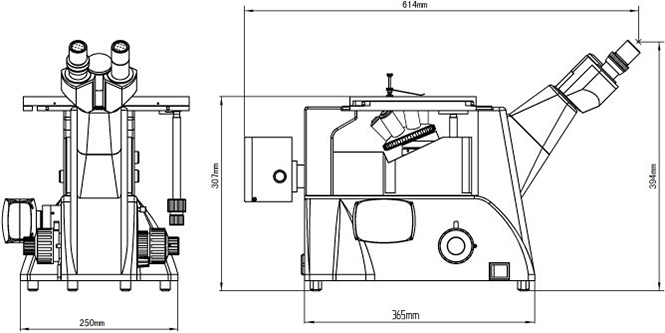

二.Technical Parameters
|
Technical specifications |
|
|
Eyepiece |
Large field of view WF10X (field of view Φ22mm) |
|
Infinity long working distance flat field achromatic objective lens
|
PL L10X/0.25 Working distance：20.2 mm |
|
PL L20X/0.40 Working distance：8.80 mm |
|
|
PLL50X/0.7 Working distance：3.68 mm |
|
|
PL L60X/0.85 Working distance：0.4 mm |
|
|
Eyepiece tube |
45˚Tilt, the distance adjustment range is 53~75mm. |
|
Focusing mechanism |

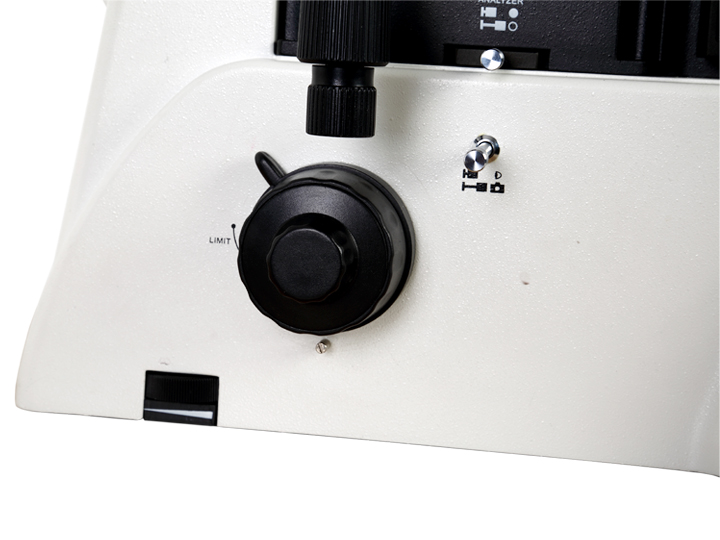

Coarse and micro-coaxial focusing, with locking device, micro-motion value:2μm. |
|
converter |
Five holes (inward ball positioning) |
|
Stage
|
Mechanical moving stage, external dimensions: 242mmX200mm, moving range 30mmX30mm. |
|
Round rotatable stage plate size: outer diameter Ф130mm, light aperture is less than Ф12mm. |
|
|
Lighting system
|
6V30WHalogen lamp, adjustable brightness |
|
12V50WHalogen lamp, adjustable brightness |
|
|

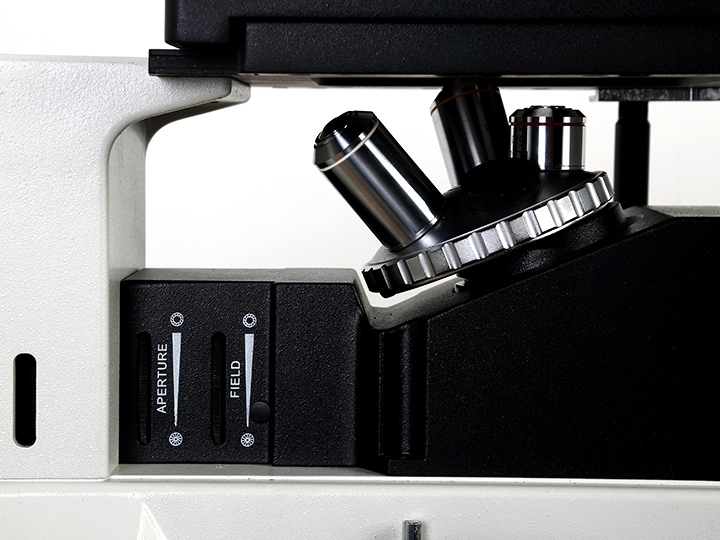

Built-in field diaphragm, aperture stop and pull-plate polarizer |
|
|
With frosted glass, yellow, green and blue filter |
|
