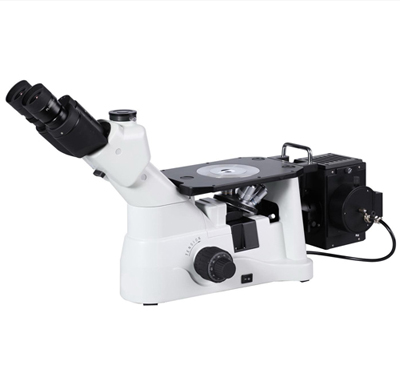

    CDM-818Inverted metallographic microscope

    Description:Provide superior image quality and stable and reliable mechanical structure; easy to operate, complete accessories, widely used in teaching and scientific metallographic analysis and factory laboratory material testing.Optical system: Infinity chromat…

    Provide superior image quality and stable and reliable mechanical structure; easy to operate, complete accessories, widely used in teaching and scientific metallographic analysis and factory laboratory material testing.

    Optical system: Infinity chromatic aberration correction optical system (CSIS), with better image quality, higher resolution and more comfortable viewing.




    Eyepiece and objective lens:High eye point, ultra wide field field eyepiece, PL10x/22mm, providing a wider and flat viewing space and can be equipped with various micrometers for measurement, infinity flat field achromatic long working distance professional metallographic objective , no cover glass design.



    Observation tube:Hinged three-eye, adjustable visibility, 45° tilt, photographic camera, capture and save observation images, configuration computer and professional software for image analysis.

    Focusing mechanism: low-key coarse-tuning coaxial focusing mechanism with coarse adjustment elastic adjustment device, coarse adjustment of 38mm per revolution, fine adjustment accuracy of 0.002mm.




    Lighting system:Reflective Kola illuminator with iris diaphragm and centrally adjustable field diaphragm, adaptive 90V-240V wide voltage, 12V50W imported halogen lamp, effectively protects and extends the life of halogen bulbs.

    Stage:The coaxial low hand position adjustment moving ruler and the carrier extension plate can be added to expand the application space to meet the needs of customers with different needs.



    Technical Parameters:

    Optical system

    Infinity chromatic aberration correction optical system

    Observation tube

    Hinged trinocular head, 45° tilt, pitch adjustment range: 54-75mm, unilateral diopter adjustment ±5 diopter split ratio:
    Binocular 100%, binocular: trinocular = 80%: 20%


    Eyepiece

    High eye point large field of view flat field eyepiece PL10X22mm

    High eye point large field of view flat field eyepiece PL15X/16mm

    Objective mirror

    Infinity long working distance flat field achromatic metallographic objective:LMPL5X/0.15/WD10.8

      LMPL10X/0.3/WD10

                                      LMPL20X/0.45 /WD4

    Infinity long working distance flat field semi-reduction metallographic objective:LMPLFL50X/0.55 /WD7.8



    converter

    5-hole converter

    Focusing mechanism

    Coarse and fine-tuning coaxial, coarse adjustment per revolution: 38mm, fine-tuning per revolution: 0.2 mm, focusing accuracy: 0.002mm, with elastic adjustment device

    Stage

    Fixed platform: size160X250mm

    Workbench

    Metal stage plate (center hole Φ12) / metal stage plate (center hole Φ25) / stage extension plate

    Moving ruler Low position coaxial mechanical moving ruler, stroke 120x78mm

    Reflective lighting system

    Reflective Kola illuminator with variable aperture diaphragm and central adjustable field diaphragm, adaptive 90V~240V wide voltage, 12V50W halogen lamp, center adjustable, continuously adjustable brightness

    Polarizing device

    Polarizer insert

    Detector insert, 360 degree rotation

    Filter

    Φ32mmYellow/green/blue/neutral

    Photography device

    Photographic tube (with PK mount), 3.2X photographic eyepiece

    Camera

    0.5X/1.0X/    C type camera

    Optical analysis software)

    Metallographic Tissue Atlas Analysis Software (Quantitative) TM-4000JX

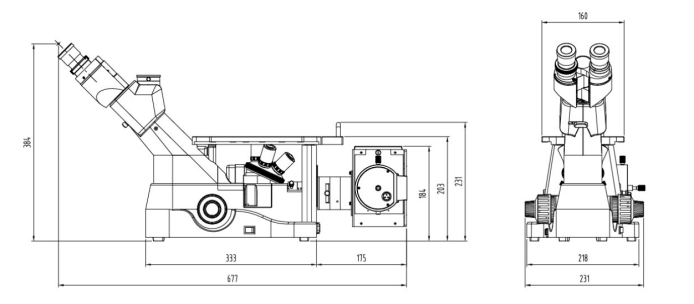

    CDM-818 series inverted metallographic microscope size chart:
