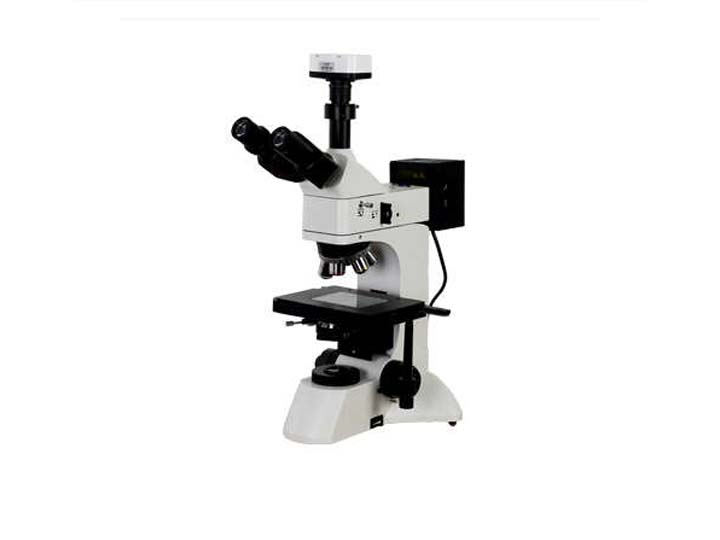

CDM-965Upright metallographic microscope
一、use
CDM-965 adopts excellent infinity optical system and modular function design concept, which can easily upgrade the system and realize polarized light observation and other functions. The compact and stable high-rigidity body fully reflects the anti-vibration requirements of microscope operation. The ideal design with ergonomic requirements makes the operation more convenient and comfortable, and the space is wider. It is suitable for microscopic observation of metallographic structure and surface morphology. It is an ideal instrument for metallurgy, mineralogy and precision engineering research. Suitable for the electronics, metallurgy, chemical and instrumentation industries for viewing transparent, translucent or opaque materials such as cermets, manifolds, printed circuit boards, liquid crystal panels, films, fibers, coatings and other non-metallic materials. It is suitable for observation and analysis by medicine, agriculture, forestry, public security, schools and scientific research departments.
二、Standard configuration
|
CDM-965 Technical specifications |
|
|
eyepiece |
Large field of view WF10X (field of view Φ22mm) |
|
Infinity plan achromatic objective lens
|
PL L5X/0.12 Working distance：26.1 mm |
|
PL L10X/0.25 Working distance：20.2 mm |
|
|
PL L40X/0.60 Working distance：3.98 mm |
|
|
PL L60X/0.70 Working distance：3.18 mm |
|
|
Eyepiece tube |
30 ̊ tilt, the distance adjustment range is 53~75mm. |
|
Focusing mechanism |
Coarse and micro-coaxial focusing, with locking and limiting device, micro-motion value:2μm. |
|
converter |
Five holes (inward ball positioning) |
|
Stage |
Double-layer mechanical mobile stage, dimensions:210mmX140mm,Moving range:75mmX50mm |
|
Lighting system |
6V30W halogen lamp with adjustable brightness |
|
Configure yellow, blue, green filter and frosted glass |
|
|
Built-in field diaphragm, aperture diaphragm, color filter conversion device, push-pull analyzer and polarizer |
|
|
Transmission lighting system |
Abbe condenser NA.1.25 can be raised and lowered |
|
Built-in field diaphragm in the concentrating mirror |
|
|
Configure blue filter and frosted glass |
|
|
6V30W halogen lamp, adjustable brightness |
|
